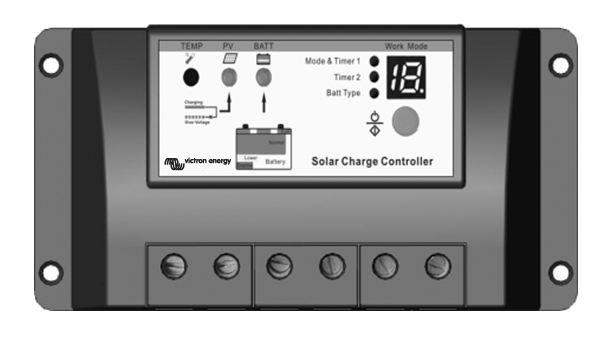

BlueSolar Charge Controller
12/24V-10A with timer
Victron Energy
Specification Summary
Nominal system voltage : 12 / 24VDC*
Maximum PV input voltage : 50V
Nominal charge / discharge current : 10A
* The controller will recognize the system rated voltage when start up. If the battery
Product Overview
• 12/24V automatic recognition
• Efficient Series PWM charging, increases battery lifetime and improves solar system performance.
• Uses MOSFET as electronic switch, without any mechanical switch
• Automatic day / night recognition.
• Digital LED menu.
• Intelligent timer function with 1-15 hours option.
• Unique dual timer function, enhances the flexibility of street light system.
• Gel, Sealed and Flooded battery type option.
• Temperature compensated charging and discharging.
• Electronic protection: overheating, over charging, over discharging, overload and short circuit.
• Reverse current protection.
The controller is for off-grid solar systems, especially solar light systems, and protects the
Though the controller is easy to operate and use, please take your time to read this manual
